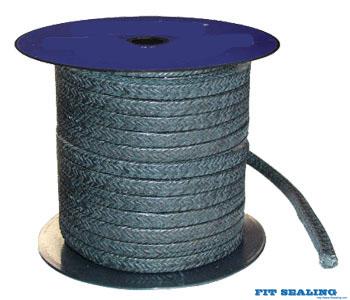

Carbon Fiber PackingCarbon Fiber Packing

Carbon Fiber Packing

  • Item No. 240
  • Carbon Fiber
  • Black Color
  • High-temperature
  • Product description: Carbon Fiber Packing braided by high temperature carbon fiber yarn - CiXi FEITE Sealing Packings
  • INQUIRY

DESCRIPTION:

Braided from strong carbon continuous yarns after softening, impregnated with proprietary lubricants and graphite particles, which fill voids, act as a break-in lubricant, and block leakage.

Carbon Fiber Packing

APPLICATION:

To be used as packing material for stuffing boxes of pumps or valves in high pressure and high temperature application. To be used as stand-alone packing or in combination with GRAPHITE RING as anti-extrusion ring. In combination with pure graphite ring it presents the perfect seal for dry-running equipment like ventilators and fans.

Handle water, steam, acids and alkalis for power stations, refineries, boiler plants etc.
Seats quickly, break-in without extensive adjustments.
Graphite Packing is commonly used in steam turbines, high temperature motor-actuated valves and for high pressure, high temperature valve application in general.

PARAMETER:

Style
240
Pressure
Rotating
25 bar
Reciprocating
100 bar
Static
200 bar
Shaft speed
20 m/s
Density
1.4 g/cm3
Temperature
-50~+650°C
PH range
1~13

DIMENSIONS:in coils of 5 to 10 kg, other weight on request.
Carbon Fiber Packing Ring is available.

Carbon Fiber Relative:

Graphite Packing with Carbon Fiber Corners
