  • Flexible Graphite Packing

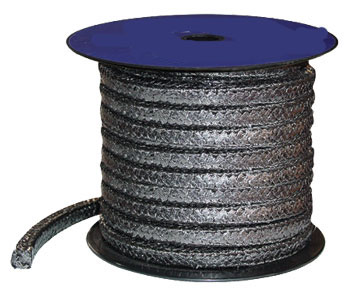

Flexible Graphite Packing

Flexible Graphite Packing

  • Item No. 250
  • Color Black
  • Graphite
  • Flexible
  • Product description: Flexible Graphite Packing is braided by pure graphite yarn from FEITE Sealing Packing
  • INQUIRY

DESCRIPTION:

Braided from low-sulphur expanded graphite yarns, which are reinforced by cotton or glass fiber. It has a very low friction, does not damage shafts or stems. It shows good thermal and chemical resistance and high elasticity.

Flexible Graphite Packing

APPLICATION:

It is a multi-service packing capable of a wide variety of uses throughout a plant. It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure, high-temperature hostile environments of hydrocarbon processing, pulp and paper, power stations, refineries and industries where effective sealing is vital. Precaution: in oxidizing environment. Recommendation: Use preferably with high carbon fiber anti-extrusion packing rings.

PARAMETER:

Style
250
Pressure
Rotating
20 bar
Reciprocating
100 bar
Static
250 bar
Shaft speed
20 m/s
Density
1.3 g/cm3
Temperature
-200~+550°C
PH range
0~14

DIMENSIONS:in coils of 5 to 10 kg, other weight on request.

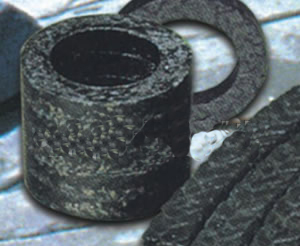

Pure Graphite Packing Rings are available.
