Ceramic packing with graphite impregnation

Item No. 263
Product description: Ceramic packing with graphite impregnation from FEITE Sealing Packing
INQUIRY

Description:

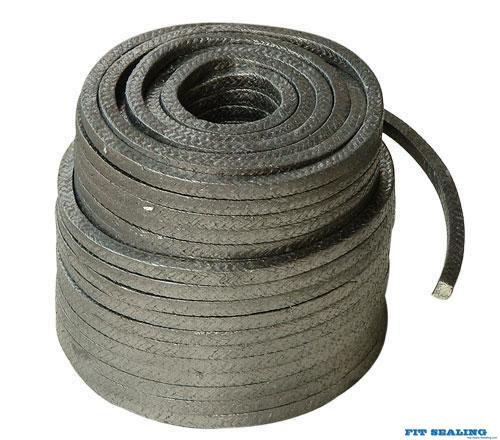

Square braided from ceramic fiber impregnated with graphite. Normal for valves and static seal under supper high temperature.

CONSTRUCTION:

Ceramic fiber is standout among the different organic and inorganic fibers as ideal replacement of asbestos. All of FIT ceramic products are made of good quality ceramic fiber, it has many excellent capabilities of high temperature resistance, low density and low thermal conductivity, better insulation and incombustible etc.

Ceramic fiber packing

Braided from ceramic fibers without any impregnation, will not shrink or swell in service. It can be reinforced by fiberglass or SS wire, May be ordered square or round cross section.

Graphited Ceramic packing with Nickel wire

It is ceramic packing reinforced with Inconel or SS or Nickel wire and lubricated by graphite.

APPLICATION:

As a static seal for vessels, heaters, manhole, lids, covers, thermal insulation and fire-proof of pipes etc under high temperature. Suited for chemically neutral and resistant to water, steam, hot air, oils and so on.

PARAMETER:

Temperature : 850°C (with fibreglass)

1050 °C(with wire)

PH range: 5~9

PACKAGING:

In coils of 5 or 10 kg,

other weight on request
