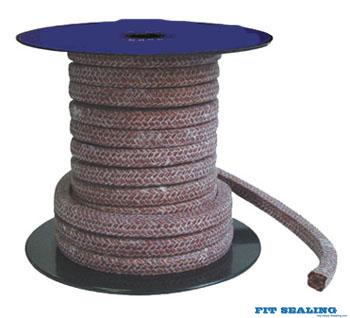

Kynol Fiber Packing

Kynol Fiber Packing

  • Item No. 274
  • Product description: Kynol Fiber Packing from FEITE Sealing Packing
  • INQUIRY

Description:

Braided from high-performance Kynol (also named novoloid or phenolic) fiber impregnated with special PTFE lubricant, it has very good mechanical properties combining softness and strength. The packing has natural golden sheen. Compared to ordinary aramid and PTFE

★    Thermal stability, low heat expansion;
★    High dimensional stability and superior pressure resistance even at elevated temperature;
★    Good process-ability, easy to cut and fit;
Outstanding chemical resistance particularly in acidic media;
★    Excellent resistance to organic solvents, oil and fuels…
PTFE Packing with Kynol fiber corners
It contains the advantage both PTFE and Kynol
APPLICATION:
A high performance packing that is well suited to applications where graphite impregnation may not be acceptable. Suitable for abrasive media, and where contamination is not permitted. It has multiple uses in chemical plants and pulp and paper mills, and is regularly used in rotating and reciprocating pumps, washer journals, liquor pumps, refiners and digesters.
PARAMETER:
Rotating
Reciprocating
Static
Pressure
20 bar
100 bar
200 bar
Shaft speed
20 m/s
1.5 m/s
2 m/s
Temperature
-200~+260°C
PH range
1~13
Density
appr 1.5g/cm3
COMPARISON:
FIT
Chesterton
Latty
Teadit
Utex
Speco
Jeil
274
1727
7188
2777
248
2250
3078
