DESCRIPTION:
Braided from high strength arcylic synthetic fiber pre-impregnated with PTFE, and re-impregnated during square braiding. It has excellent properties of sealing, lubricating and resistance to chemicals.
APPLICATION:
Excellent multi-service for a wide variety of uses throughout a plant. Used in pumps and valves, and can handle most chemicals except strong acid, strong alkali and strong oxidizer.Especially for the condition of middle temp. high-pressure,high-speed,and where contamination is not permitted.

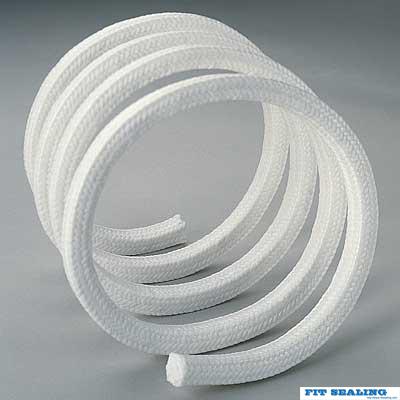

Arcylic Fiber Packing with PTFE
PARAMETER:
Style
|
270
|
||
Pressure
|
Rotating
|
20 bar
|
|
Reciprocating
|
100 bar
|
||
Static
|
200,350 bar
|
||
Shaft speed
|
12 m/s
|
||
Density
|
1.4 g/cm3
|
||
Temperature
|
-100~+260(310)°C
|
||
PH range
|
1~13
|
DIMENSIONS:in coils of 5 to 10 kg, other weight on request.

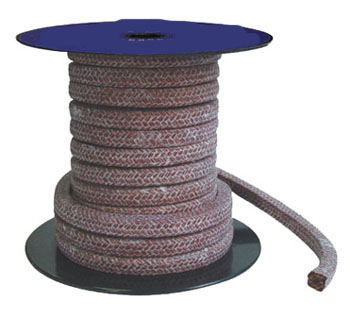

Arcylic Fiber Packing with rubber Core

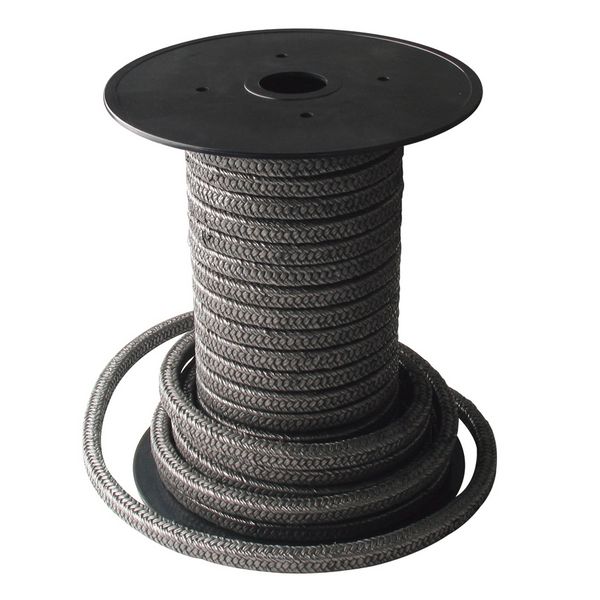

Arcylic Fiber Packing with Graphite
