DESCRIPTION:

It is made from Pure PTFE Material by Extruded or Molded way.

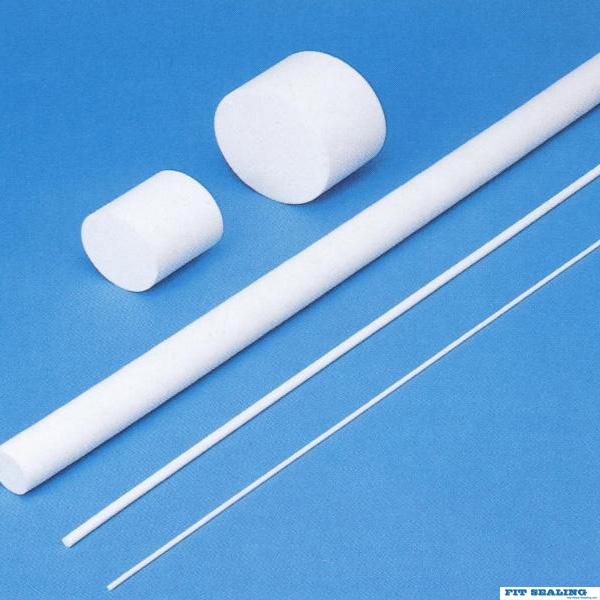

Extruded PTFE rod

Sizes: Dia. 5mm ~ 200mm , Length: 300mm ~ 2000mm/pc

Extruded PTFE rod has a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly rods. Extruded PTFE rod has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.

Molded PTFE Rod

Sizes: Dia. 50mm ~ 300mm , Length: 100mm ~ 300mm/pc

Molded PTFE Rod has a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly rods. Molded PTFE rod has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.

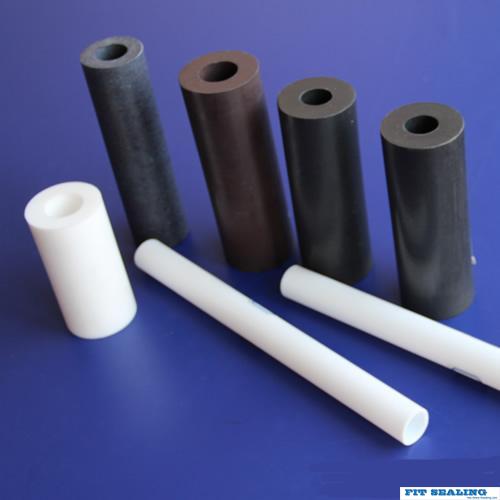

Extruded PTFE Tube

Sizes: OD: 20mm ~ 410mm

PTFE Tube has a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly tube. PTFE Tube has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.

Molded PTFE Tubing

Sizes: OD 40mm ~ 300mm

PTFE Cylinder has a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly Cylinder. PTFE Cylinder has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.

PARAMETER:

Properties	unit	Result
Apparent density	g/cm3	2.10-2.30
Tensile strength (min)	MPa	15.0
Ultimate elongation (min)	%	150
Working Temp	°C	-180 ~ 260
Melting point	°C	327
Produce Max. Temp	°C	385
