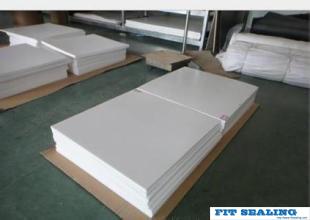

Pure PTFE Sheet

Pure PTFE Sheet

  • Item No. 321
  • Color White
  • Hard
  • Product description: Pure PTFE Sheet,Skived PTFE Sheet,Molded PTFE Sheet,Filled PTFE Shee from FEITE sealing
  • INQUIRY

DESCRIPTION:

PTFE products include sheet, Tube , Rod , Film and gaskets etc., they are molded, skived or cut from 100% virgin PTFE. It has the best chemical corrosion resistance among known plastics. Without being aging, lowest friction coefficient, wear resistance. The unloaded operating temperature range is -180~+260C.

PTFE Sheet

CONSTRUCTION:

Filled PTFE Sheet The filled PTFE products are molded PTFE resin mixed with the most frequently used filler materials such as glass fiber, carbon fiber and graphite etc. The filled PTFE has improved compression strength, better abrasion resistance, high thermal conductivity and lower thermal expansion compared with pure PTFE products.

APPLICATION :

Products
Tensile Strength
Pressure
Mpa
Density
g/cm3
Temperature
PTFE Sheet
15Mpa
10
2.1~2.3
-100 ~ 250
Filled PTFE Sheet
10Mpa
16
2.1~2.3
-100 ~ 260
Expanded PTFE sheet
Gore, Klinger, Garlock, Sealon etc., According to manufacturer
Seal materials, electrical insulation parts, lining, oil less lubricating materials etc.

NORMAL DIMENSION:

Size(mm)
Thickness(mm)
tolerance
150X150
1.0~30
±0.30~±0.50
250X250
1.5~30
±0.30~±0.50
300X300
1.5~30
±0.30~±0.50
450X450
1.5~30
±0.30~±0.50
600X600
1.5~30
±0.30~±0.50
800X800
1.5~30
±0.30~±0.50
1000X1000
1.5~30
±0.30~±0.50
1200X1200
2~30
±0.30~±0.50
1000X2000
3~35
±0.30~±0.60
1500X1500
3~35
±0.30~±0.60
2000X2000
5~35
±0.30~±0.60
