PTFE Filament Packing

PTFE Filament Packing

  • Item No. 212
  • Color White
  • Filament Fiber
  • Product description: PTFE Filament Packing comes from Ningbo FEITE Sealing Packings.
  • INQUIRY

DESCRIPTION:

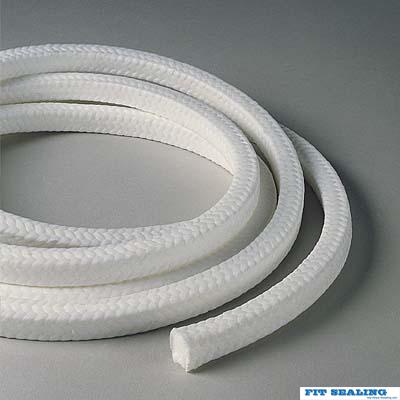

PTFE Filament Packing,Made of sintered, highly stretched PTFE multifilament yarns LENMENS with thoroughly PTFE impregnation. The packing is then re-impregnated with a mix of PTFE emulsion during braiding operation. Good resistance to compression and to extrusion, high structural and cross-sectional density.

APPLICATION:

Especially suited for high pressure valves, plunger pumps, agitators, mixers etc. and where contamination is not permitted.

PTFE Filament Packing

PARAMETER:

Style
212
Pressure
Rotating
20 bar
Reciprocating
150 bar
Static
250 bar
Shaft speed
20 m/s
Density
1.75 g/cm3
Temperature
-200~+260°C
PH range
0~14

DIMENSIONS:in coils of 5 to 10 kg, other weight on request.
