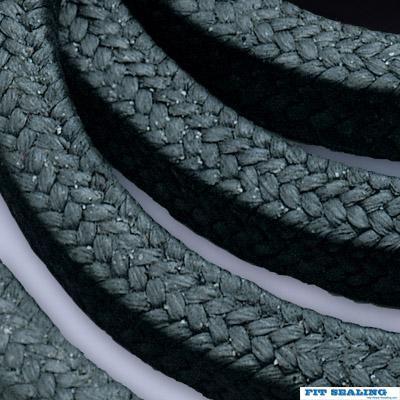

Graphite PTFE Filament Packing

Graphite PTFE Filament Packing

  • Item No. 221
  • Color Black
  • gPTFE Filament Fiber
  • Product description: Graphite PTFE Filament Packing is braided by gPTFE filament fiber comes from FEITE Sealing Packing
  • INQUIRY

DESCRIPTION:

Graphite PTFE Filament Packing ,gLENMENS yarn is high strength PTFE filament LENMENS pretreated with graphite impregnation. The packing contains more graphite content compared with normal gPTFE, it has very low friction and good thermal conductivity of graphite, The characteristics are similar to high quality graphite PTFE Packing, just has cross-sectional density, and some particles of graphite on surface. it almost suits for most of chemical media. It is new style.

APPLICATION:

For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE Packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.

PARAMETER:

Style
221
Pressure
Rotating
30 bar
Reciprocating
100 bar
Static
200 bar
Shaft speed
25 m/s
Density
1.65 g/cm3
Temperature
-200~+280°C
PH range
0~14

DIMENSIONS:in coils of 5 to 10 kg, other weight on request.
gPTFE Filament Fiber Packing Ring is available.
