DESCRIPTION:

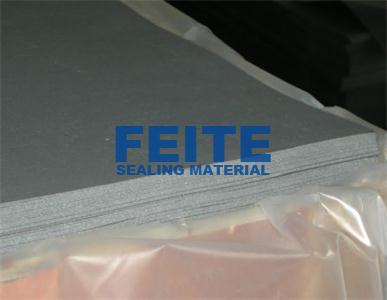

Non-asbestos beater sheet is made from synthetic emulsion, plants fiber and filling material. The production is used for position of lubrication system, which has the property of good compressibility and coefficient of resilience, in addition, the inside of gasket can properly swell to meet oil, that make up of the shortcoming that procession machining precision is not enough, which affected self-sealing. Can be Vulcanized non-asbestos beater sheet with smooth faces.

PARAMETER:

Used in Automobile, farm machinery, motors, engineering etc. It can be used in oil system and water supply system at temperature 150℃

Item	Uint	332	332V
Density	g/cm	0.9~1.1	1.2~1.4
Tensile strength	≥Mpa	12.7
Compressibility	%	15±5
Recovery	≥%	45
Stress relaxation	≤%	35
Weight increase (in oil)	≤%	35
Thickness increase (in oil)	≤%	15

TOLERANCE:

Item	Tolerance	In same sheet
Thickness	±mm	mm
0.5	0.05	0.06
0.6-0.8	0.06	0.08
1-2	0.08	0.08

DIMENSIONS:
