Spiral Wound Gasket

  • Item No. 110
  • China
  • Ningbo
  • Sprial Winding Gaskets
  • Product description: Metal spiral wound gasket is made from metal strip spiral winding with non-metallic material filler, and support rings are available inner and outer metal ring - CiXi Feite Sealing Material Co Ltd
  • INQUIRY

DESCRIPTION:

Spiral Wound Gasket is formed of V-shaped metallic stripe and soft non-metallic filler by means of piled, spiral wound and connected its end and beginning by dot welded. Depend on its excellent compression resilience it is suitable for sealing spots where the alteration of temperature and pressure are frequent.Support rings,inside and Outside the spiral,improve the gasket's handing,fitting and Versatility.It can be used as the static sealing element of pipe, valve, pump, thermal exchange, condensing tower, plain hole and man hole of flange, etc. It has been widely applied in the fields of petrochemical, mechanical manufactory, power station, metallurgy, shipbuilding, medical and pharmaceutical nuclear power station and navigation, etc.

We can produce according to ASME, BS, JIS and EN(DIN) standards or client request.


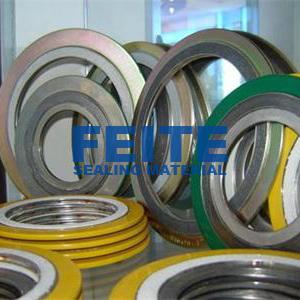

Types
Style
Flange
For example
Basic type SWG
SW110-R
Tongue and Groove
SS316L/PTFE
SWG with inner ring
SW110-IR
Male and Female
304 304/FG
SWG with outer ring
SW110-CG
Raised face
Flat face
304/ASB CS
SWG with inner
& outer rings
SW110-CGI
316L 316L/FG CS
SWG for heat exchanger
SW110-H
Heat exchanger
304/FG with 1 bar of DJ
Special shape SWG
SW110-S
Special
Oval


SW110-R Basic Type

Basic construction type, inner and outer diameters are reinforced
with several piles of metal without filler to give greater stability and
better compression characteristics. - Suitable for tongue and groove,
male and female or grooved to flat face flange assemblies.


SW110-IR Inner Ring Type

Solid inner metal ring acts as a compression stopper. To prevent
accumulation of solids, reduce turbulent flow of process fluids
and minimize erosion, damages of gasket between flange bore and
the inside diameter, the annular space is filled up by solid inner metal ring.
- Suitable for male and female pipe flanges.


SW110-CG Outer Ring Type

Solid outer ring accurately locates the gasket on the flange face
to give the additional radial strength to prevent the gasket blowout
and acts as a compression limiter. In case of installing the outer ring,
it is very easy to install the gasket to flange face because the end of
outer ring will touch at bolts - Suitable for use with flat face and raised
face flanges. For class 900 and above an internal ring is recommended.


SW110-CGI Inner & Outer Rings Type

A inner ring and outer ring type gasket will give an additional compression
limiting stopper for gasket inner and outer side. It will prevent the corrosions
on flange face at annular space. - Suitable for use with flat face and raised
face flanges and specified for high pressure / temperature service
- Class 900 and above or where corrosive or toxic media are present.


MATERIAL:

Style
Structure
Hoop material
Filler material
Inner & outer ring material
Normal thickness mm
Gasket
Inner & outer ring
SW110-R
Without rings
304(L);316(L)
321;317L
31803
Monel,
Ti,Ni
INC
Hast.C/B
Zr702
etc.
Graphite, PTFE,
Asbestos
Non-asb
Mica,
etc
CS,
304(L), 316(L),
321, 317L
31803
Ti,Ni
INC
Hast. Monel,
Zr702
3.2
4.5
(0.175”)
6.4
2
3
(1/8”)
4
SW110-IR
With inner ring
SW110-CG
With outer ring
SW110-CGI

With inner &

outer rings

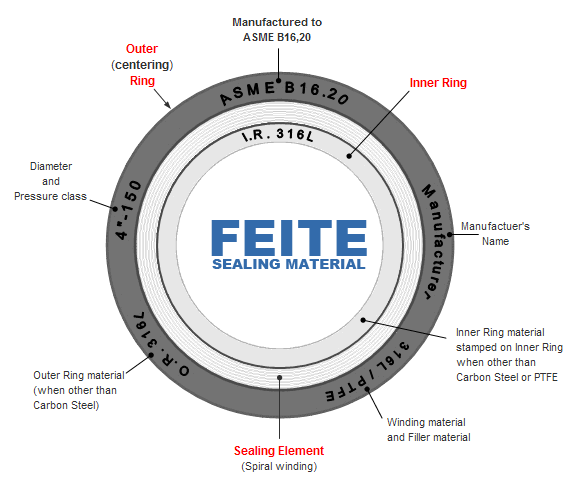

MARKING EXAMPLE:


REFERENCE:

SW Gasket Color Chart

SW Gasket ASME B16.20 Size
