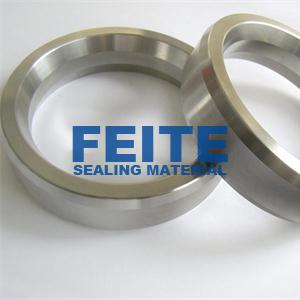

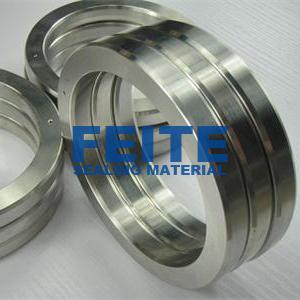

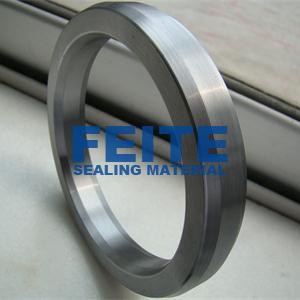

Ring Joint Gasket

  • Item No. 120
  • RTJ
  • Product description: Ring Joint Gaskets can be called RTJ,Type R,RX,BX Ring,Shape Oval, Octagonal,Metal Ring Gaskets from China FEITE Gaskets.
  • INQUIRY

DESCRIPTION:

Ring Joint Gasket is machined from solid metal in a variety of shapes and designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material and shape. It is designed to withstand exceptionally high assembly loads over a small area, thus producing high seating stresses.

Shape: OVAL, OCTAGONAL, R, RX, BX, LEN, Special as drawings.

Material:Soft Iron, LCS, F5, 304, 316, 321, 347, 410, 31254, Monel, 825, 625

HARDNESS TABLE:

Material
Maximum Hardness (BRINELL)
T(℃)
Soft Iron
90
530
Low Carbon Steel
120
530
4C6% Chrome 1/2% Mol(F5)
130
500
304 Stainless Steel
160
750
316 Stainless Stee
160
750
321 Stainless Stee
160
750
347 Stainless Steel
160
750
410 Stainless Steel
170
500
31254 Stainless Steel
160
650
Monel
140
600
Inconel 825
160
1000
Inconel625
180
1100

DIMENSIONS:

Standards for Ring Joints Gaskets used with flanges
RTJ Style
RTJ standard
Flange standard
R
ASME B 16.20
API 6A
ANSI B 16.5
ANSI B 16.47 Series A
RX
ASME B 16.20
API 6A
API 6B
BX
API 6A
API 6BX

Can be ordered according to the detailed drawing
