Graphite PTFE Packing

  • Item No. 220
  • Color Black
  • gPTFE
  • All-function
  • Product description: Graphite PTFE Packing is made from high quality graphite PTFE yarn - CiXi FEITE Sealing Packings
  • INQUIRY

DESCRIPTION:

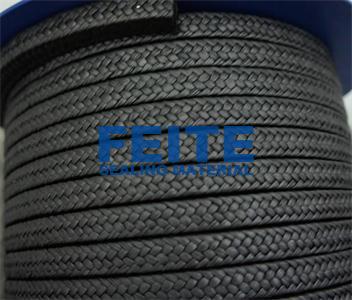

Graphite PTFE Packing , Braided from graphited PTFE (gPTFE) plain yarn. The packing is soft, with low density There are no free particles of graphite on surface and therefore no contamination can occur.

APPLICATION:

For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE Packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.

Graphite PTFE Packing without Oil

PARAMETER:

Style
220
Pressure
Rotating
20 bar
Reciprocating
100 bar
Static
150 bar
Shaft speed
16 m/s
Density
1.5 g/cm3
Temperature
-200~+280°C
PH range
0~14

DIMENSIONS:in coils of 5 to 10 kg, other weight on request
gPTFE Packing Ring is available.
