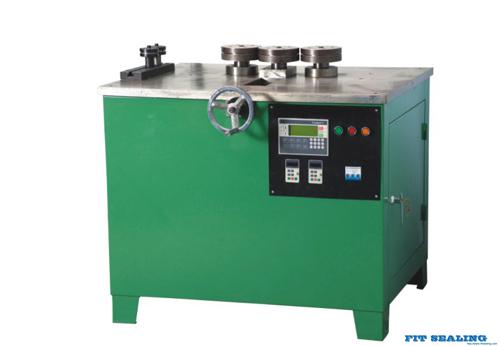

Semi-Auto Metal Ring Bender Machine

Item No. 415
Semi-auto
Product description: Semi-Auto Metal Ring Bender Machine for Inner Ring and Outer Ring of Sprial Wound Gasket from FEITE Sealing Machines
INQUIRY

Description:

Bend metal strip into inner or outer ring of SWG, No longer expensive lathes need; Utilizing adequately metal material,, no waste; No problem for large sizes

New style, with 3 pcs of motor and 2pcs of transducer, the speed can be adjusted.It is more better than old style

1. Power:380AV, 50HZ, 2.8 KW;

2. L×W×H=1.05×0.9×1m;

3. N.W.: appr.380kgs

4. Line Speed: 0-200mm/s

5. Work range: ID 180~4000mm

Thick. 2mm,3mm,4mm

Width of ring: 6~60mm

PREVIOUS：Metal Ring Bender MachineNEXT：Auto Metal Ring Bender Machine
