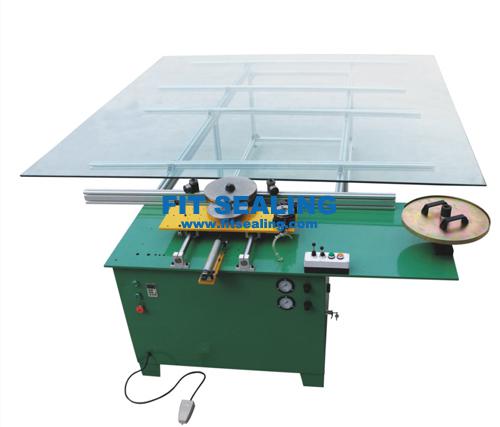

Large Winding Machine for SWG

Item No. 412
Large Winding
Product description: Large Winding Machine for SWG from FEITE Sealing Machines
INQUIRY

Large winder for SWG can make Spiral Wound Gaskets with or without inner & outer ring, needn’t complex molds. Work pressure is changed with dia. Size controlled by air pump. Horizontal style is suitable roomy workshop. Need additional welder.

Type	412A	412B
Produce Range	inner ring or without inner ring	inner ring or without inner ring
Thickness	4.5mm	4.5mm
Max. OD	2500mm	2500mm
Min. ID	300mm	300mm
Power	2.2kw	8kw
Power set	0.75kw	0.75kw
Point Power	/	6kw
Voltage	380V/220V可选	380V/220V可选
Line Speed	0-800mm/s	0-800mm/s
Air pressure	0.6--0.8MPa	0.6--0.8MPa
Inverter	2.2G	2.2G
PLC	N	Y
Dimension	34002600980mm	34002600980mm
G.W.	500kg	550kg
