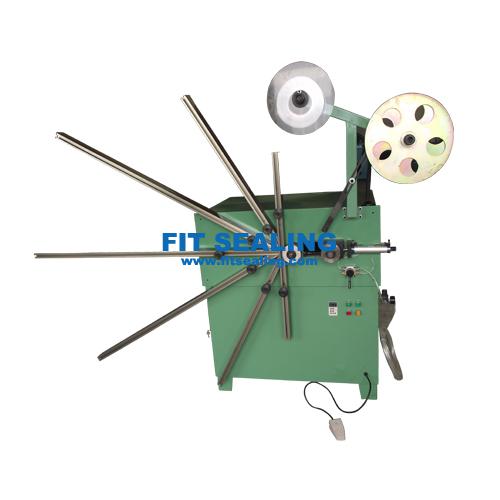

This winding machine can process a wide range of Spiral Wound Gasket with or without inner ring. A linear guide, control device on the outer diameter of gasket and the latest design transmission equipment ensure smooth running of dual active roller.
|
Name |
Middle winding machine |
|
Stype |
411 |
|
Gasket size range |
With or without inner ring |
|
Gasket thickness |
4.5mm |
|
Max OD of gasket |
1600mm±0.8mm |
|
Min ID of gasket |
200mm |
|
Line speed |
0--800mm/s |
|
Power set |
1.5kw |
|
Inverter |
2.2G |
|
Voltage |
380V/220V |
|
Air pressure |
0.6--0.8MPa |
|
Dimension |
2200*850*1800mm |
|
Total weight |
220kg |
