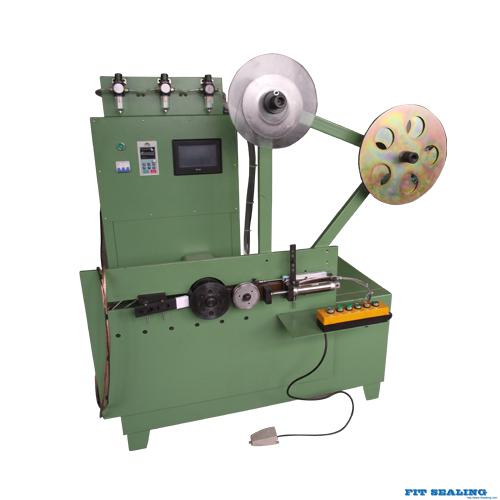

Semi-Automatic Winder Machine for SWG

Semi-Automatic Winder Machine for SWG

  • Item No. 412
  • Semi-auto
  • Product description: Semi-Automatic Winder Machine for Spiral Wound Gasket from FEITE Sealing Machines
  • INQUIRY

Description:

It can make Sprial Wound with or without inner & outer ring, attaching high quality inner size molds. Work pressure is changed with dia. Size controlled by air pump; Automatic work controlled by PC; Automatic weld. Especially for large batch fewer spec.


Specification
Item 412
Produce Range 2"--18" as ASME
Thickness 4.5mm
Max.OD 500mm±0.2mm
Min. ID 50mm
Shaft Speed 0--200rpm
Power 1.5kw
Voltage 380V/220V
Air Pressure 0.6--0.8mpa
Inverter 2.2G
PLC xinjie
Size 1400*1050*1650mm
Gross Weight 480kg
