DESCRIPTION:

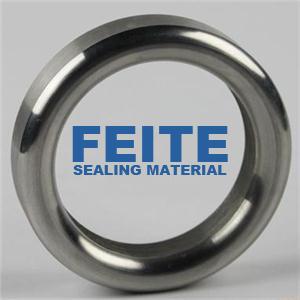

Oval Ring Joint Gasket is machined from solid metal in a variety of shapes and designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material and shape. It is designed to withstand exceptionally high assembly loads over a small area, thus producing high seating stresses.
Type below: OVAL, OCTAGONAL, R, RX, BX, LEN, SPECIAL TYPE.
MATERIAL:
|
Material
|
Maximum Hardness (BRINELL)
|
T(℃)
|
|
Soft Iron
|
90
|
530
|
|
Low Carbon Steel
|
120
|
530
|
|
4C6% Chrome 1/2% Mol(F5)
|
130
|
500
|
|
304 Stainless Steel
|
160
|
750
|
|
316 Stainless Stee
|
160
|
750
|
|
321 Stainless Stee
|
160
|
750
|
|
347 Stainless Steel
|
160
|
750
|
|
410 Stainless Steel
|
170
|
500
|
|
31254 Stainless Steel
|
160
|
650
|
|
Monel
|
140
|
600
|
|
Inconel 825
|
160
|
1000
|
|
Inconel625
|
180
|
1100
|
DIMENSIONS:
|
Standards for Ring Joints Gaskets used with flanges
|
||
|
RTJ Style
|
RTJ standard
|
Flange standard
|
|
R
|
ASME B 16.20
API 6A
|
ANSI B 16.5
ANSI B 16.47 Series A
|
|
RX
|
ASME B 16.20
API 6A
|
API 6B
|
|
BX
|
API 6A
|
API 6BX
|
Can be ordered according to the detailed drawing
