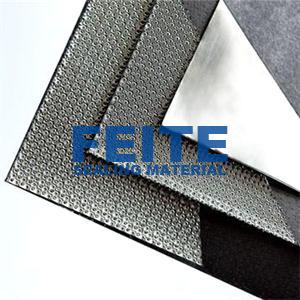

Reinforced Graphite Sheet with Wire Mesh

Reinforced Graphite Sheet with Wire Mesh

  • Item No. 313
  • Product description: Reinforced Graphite Sheet with Wire Mesh from FEITE Sealing Sheets
  • INQUIRY

DESCRIPTION:

It is made of expanded flexible graphite, reinforced by a metal of 1.4301 (304) or 1.4401(316) or CS (Carbon steel), graphite content of more then 98 %, graphite bulk density 1.0 g/cm3.

Graphite Sheet with Metal Foil
Graphite Sheet with Tanged Metal
Graphite Sheet with Wire Mesh

APPLICATION:

Made for various gaskets.
Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges,

PARAMETER:

Temperature: -200 up to 550°C
Pressure: up to 400 bar
PH Range: 0 - 14

BENEFIT:

Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.

MEDIA:

Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.

DIMENSION:

1000 x 1000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm
1000 x 2000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm
1500 x 1500 x 1.0 ; 1.5 ; 2.0 ; 3.0mm
1500 x 2000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm
