Double Jacketed Gasket

  • Item No. 150
  • Double Jacketed
  • Product description: Metal double jacketed gasket with non-metallic filler graphite or other material use to heat exchanger sealing,double jacketed gasket with ribs can be requested from China FEITE sealing gaskets.
  • INQUIRY

DESCRIPTION:

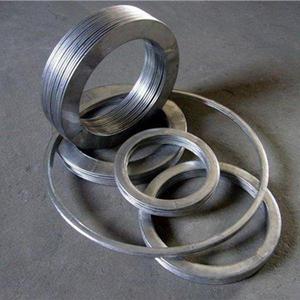

Double Jacketed Gasket (DJG) is made from graphite, ceramic, non-asbestos etc. filler covered with thin metal jacket, such as stainless steel, carbon steel, copper etc. By their sealing efficiently, provide outstanding resilience, while the metal jacket guarantees excellent sealing and protects the filler against pressure conditions, fluctuating temperatures and corrosion.

Double Jacketed Plain Gasket
Double Jacketed Corrugated Gasket
Metal Jacketed with Special Shape

APPLICATION:

DJG is particularly suitable for sealing flat surfaces of heat exchanges, gas pipes, cast iron flanges, cylinder heads of engines as well as for boilers and other vessels.By their sealing efficiently, provided by exerting strong pressure on circular rimes of the flanges, metal-jacketed gaskets can stand up to 30% deviation from the initial thickness, which is very useful in case of irregular or faulty flange rims. The chemical compatibility of the metal and the medium being sealed should be considered.

MATERIAL:

Metal material
Din
Material No.
Hardness
HB
Temperature ()
Density
g/cm3
CS/Soft Iron
1.1003/1.0038
90~120
-60~500
7.85
SS304, SS304L
1.4301/1.4306
130~180
-250~550
7.9
SS316, SS316L
1.4401/1.4404
130~180
-250~550
7.9
Copper
2.0090
50~80
-250~400
8.9
Aluminium
3.0255
20~30
-250~300
2.73

Other special metal Ti, Mon 400 are also available on request.

Materials for the double jacketed gaskets' filler:

Flexible Graphite, ASB, Non-asb
ceramic fiber, mica etc.
